3T MRI Renovation

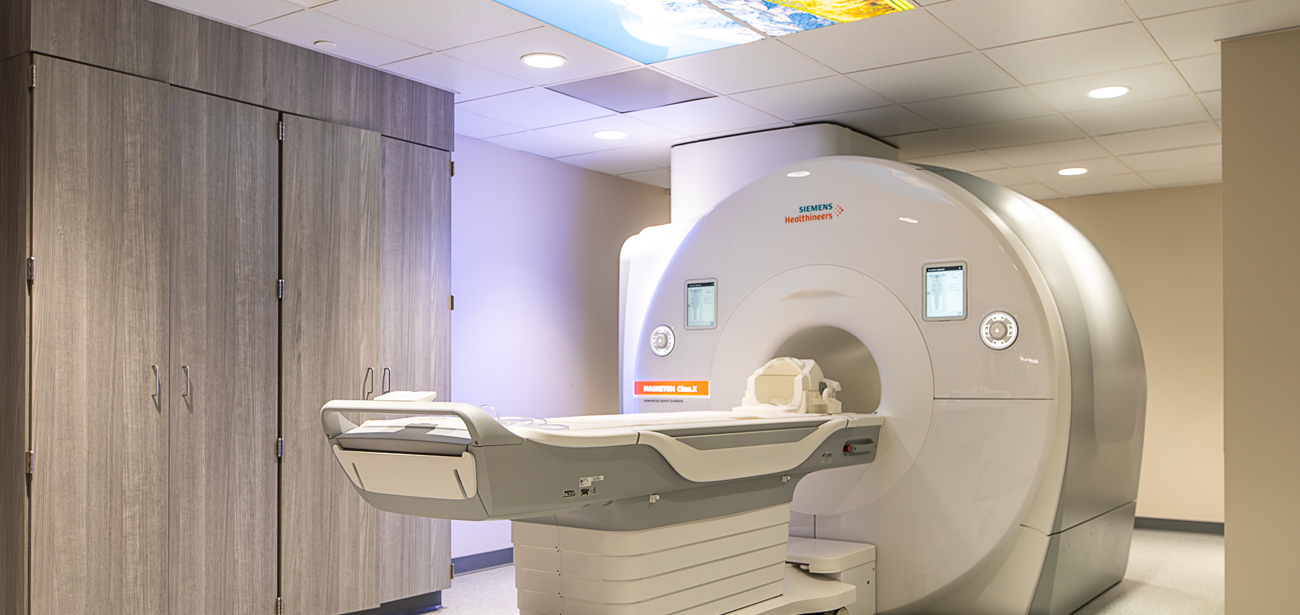

SSOE worked closely with Wayne State University to provide design services for the installation of a new 3T Magnetom Cima.X MRI scanner and associated support spaces within the Eugene Applebaum Building. An existing nuclear magnetic resonance (NMR) machine was relocated within the building to create space for the new MRI procedure room, control room, and equipment room. Support spaces included a patient changing room, toilet room, waiting area, and “mock” MRI space to help patients prepare for their procedure.

The project presented several unique challenges. While design was underway, the cutting-edge MRI equipment was still awaiting FDA approval in the United States. Partially funded by federal grant funds, the project required an aggressive design and construction schedule which did not allow for any delays. To ensure the final completion date, SSOE worked closely with the client, equipment vendors, and contractor to respond to changing equipment needs and identify and specify potential long-lead items.

In addition to the design challenges, an early structural analysis of the facility by SSOE showed the lower level to be the most suitable location for the new equipment. Because the construction access for the new MRI had to be through the existing below-grade exterior wall, the MRI was craned into the building from a main thoroughfare between the WSU facility and an adjacent hospital. Important to the success of the project, SSOE worked with the equipment manufacturer, shielding vendor, and contractor to help ensure a smooth process.

The project scope included new lighting, diffusers, millwork, and finishes, as well as incorporating the shielding and equipment requirements into the construction documents.
